제품 사양

Applicable Industries: Hotels, Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops, Other

Showroom Location: Egypt, United States, Italy, Germany, Pakistan, Algeria, Nigeria

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Hot Product 2019

Warranty of core components: 1 Year

Core Components: PLC

Condition: New

Dimension(L*W*H): Customer's requirement

Warranty: 1 Year

Name: Meat bowl Cutter

Material: SUS304 Stainless Steel

Usage: Food Industry Equipment

Type: Electricity

Function: Multifunctional Bowl Cutter Machine

Application: Meat Processing Industrial

Capacity: Customer's requirement

Advantage: Easy Operation High Efficiency

Feature: High Efficiency

Brand: XINXUDONG

After Warranty Service: Online support

Local ServiceÂ Location: Egypt, Pakistan, Algeria, Nigeria

After-sales Service Provided: Online support

인증: CE

기본 정보

인증: CE

결제 및 배송 조건

Packaging Details: plywood case packaging

Supply Ability: 1000 Set/Sets per Year

제품 설명

Product Description

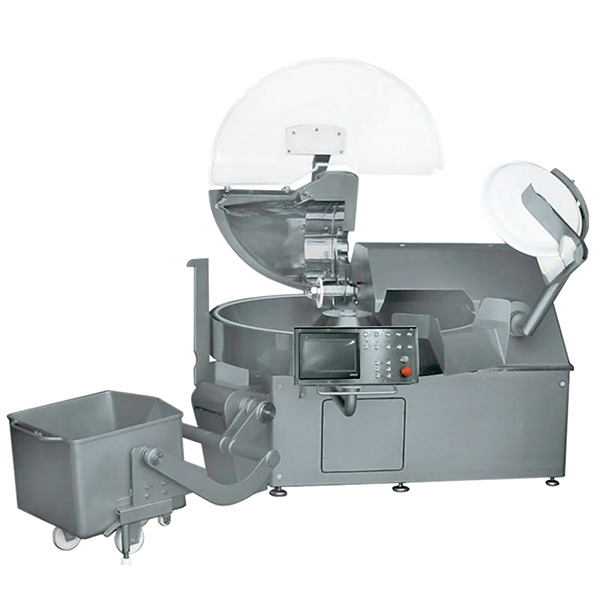

MEAT BOWL CUTTER

Meat bowl cutter is the key and the most important equipment for meat products especially for Ham production line.

This machine can cut meat, fat meat into mince and at the same time it can mix the meat well with the seasoning. So it can finish
cutting, mixing and emulsification by one machine.

It can improve the density and elastic of sausage products and improve the production rate and quality.

The Specification

Detailed Images

The Details Show

Sausage processing line

meat grinding machine for grinding the meat before mixing

Made of SUS304

Capacity is based on request

The mixing machine is used to mix the meat with starch and other addtivees high efficiently

Automatic and high efficiently.

Shape forming machine

It is for meat ball shaping. The heating system is steam heating by indirect heating.
Water temperature is controlled by adjusting the valve.
Water flow is formed by the water pump and moved forward by plates at the second part of the machine
Model: CXX-6000*800
Temperature: 75℃
Length: 6m
Width inside: 800mm

Cooking line

Boiling line is for cooking the meat ball. The heating system is indirect heating.
Water flow is formed by the plates on the upper belt;
With chains hoisting system, it can hoist the belt and cover separately
Model: ZZX-8000*800
Temperature: 90-95℃
Length: 8m
Width inside: 800mm
Size:8000*1000*2200mm

Cooling line

To cool the meat ball after boiling line and convey it to freezer; Continuously feeding in new low-temperature water and flow out
high –temperature water from the cooling tank.
Model: LQX-5000*1000
Temperature: 20-25℃
Length: 5m
Width inside: 1000mm
Size:5000*1200*2200mm

Air cooling line

This machine is used to blow off the water on the meat ball with the fan and make the temperature lower before entering the IQF.
Model:FLX-5000*1000
Dimension: 5000*1300*2500mm
Power: 4kw
Material: SUS304

Tunnel freezer

It is for instant quick freezer after air cooling

make the temperature down to -18 degree

with compressor system and other refrigeration system

automaitc scale and packaging machine

With 10 heads or 14 heads weigher

620 packaging machine

Z elevator, platform, conveyor

packaging weight: 1kg 2kg 500g based on request

It also need some other accessorty machines for this processing, like the frozen meat/surimi flake, grinder, chopper......The production line process also according to customer's flowchart.

High Efficiency XXD Meat Bowl Cutter Machine

Shape forming machine

Cooking line

Cooling line

Air cooling line

Tunnel freezer

automaitc scale and packaging machine
