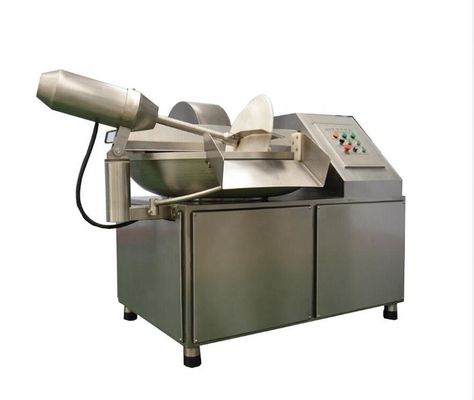

Bowl cutter is a key equipment in meat products process. It works by the high-speed rotation of cutting knife to blend the meat, fat, etc into meat stuffing and muddy flesh, at the same time, it also can stir the meat, some accessories and water into emulsified products. Bowl cutting is the answer for better product color, appearance, taste, texture, quality and higher yields, which is the exact property our bowl cutter has.
Meat Bowl Cutter Highlights:
The spindle nose employs three-layers sealing design.
High-speed rotation of cutting knife shortens running time, reduces raw materials heating rate, keep products natural color, good texture, high capacity and long shelf-life.
Panel control and safeguard design, easy and safe to operate.
Free switch of high speed and low speed, improving work efficiency, saving work time and easing labor intensity.
Widely used for meat, vegetable, seasoning and marine products processing.
Advantage:
Chopping knife is Stainless steel knife, the Quality is the best in the stainless steel cutting knife.
ZB-20. ZB-40 the gap between cutting knife and pot is ≤1.5mm.
ZB-80, ZB-125 the gap between cutting knife and pot is ≤2mm.
The whole machine is made of 304 stainless steel, it is Fine workmanship, beautiful appearance, reasonable structure, simple operation, reliable performance.
Specification Of Stainless Steel Industrial Meat Grinder Meat Bowl Chopper Machine | ||||||||||||
Model | ZB-5L | ZB-20 | ZB-40 | ZB-80 | ZB-80（ frequency conversion ） | ZB-125 (frequency conversion) | ||||||
Capacity: kg/pot | 3 | 10 | 20-30 | 60-70 | 60-70 | 90-100 | ||||||
Chop knife quantity | 3 | 3 | 3 | 6 | 6 | 6 | ||||||
Chopper speed: r/min | 1440 | 1480/2960 | 1480/2960 | 1800/3600 | CVT（300-3600） | CVT（300-3600） | ||||||
Chop pot rotational speed (Rpm) | 20 | 23 | 23 | 14/20 | 14/20 | 14/20 | ||||||
Power | 0.55kw | 4.1kw | 5.1kw | 13.17kw | 13.17kw | 20.67kw | ||||||
Dimension: mm | 440*675*335 | 780*600*850 | 1140*830*1080 | 1900*1350*1300 | 1900*1350*1300 | 2020*1200*1300 | ||||||
Weight: kg | 56 | 200 | 400 | 800 | 800 | 1200 | ||||||
control mode | Single speed | Double speed | Double speed | Double speed | frequency control | frequency control | ||||||
Any more infor need of Stainless Steel Industrial Meat Grinder Meat Bowl Chopper Machine , pls contact with us freely.
